Lexair Self-Contained 5C Tri-Grip Multi-Position Collet Fixture

CHANGE SIZES IN AN INSTANT!

TOLL FREE 888-869-2424
SELF-CONTAINED AIR ACTUATED JAW CHUCKS AND COLLET CHUCKS


CALL TOLL FREE (888-869-2424) TO PLACE CREDIT CARD ORDERS

.0005" REPEATABLE
ACCURACY

HOME

Tri-Grip collet closers are ideal for either horizontal or vertical machining center applications. Their compact design, simplified plumbing (three closers in one body) and patented "accessible-from-the-top" collet locking screw all lead to faster changeouts and infinite collet or part orientation. With a maximum working pressure of 5000 PSI and a drawtube force of 1.1 times the applied pressure, these units can provide ample grip for all your workholding needs. Double acting, fixed-length operation assures maintained height from part to part. Similar in design to most of our single collet closers, these models can be combined in multiple configurations on a fixture by the use of connector bushings that eliminate external plumbing between units. Each Tri-Grip is supplied with a matching collet wrench.

Lexair can supply precision machined standard collets, master collets and pads, emergency collets, serrated collets plus uniquely shaped collets by special order.

Model Number	Collet Type	Maximium Hydraulic Pressure	Drawtube Force (pounds)	Port Size
65401	5C X 3	5000 PSI	1.1 x Line Pressure	SAE 4

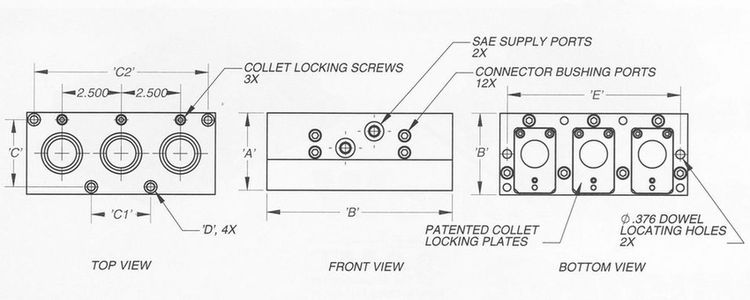

Model Number	Collet Type	A	B	C	C1	C2	D	E
65401	5C x 3	3.31	3.5 x 8.00	2.875	2.500	7.375	5/16 SHCS	7.376
All units of measure are inches.
